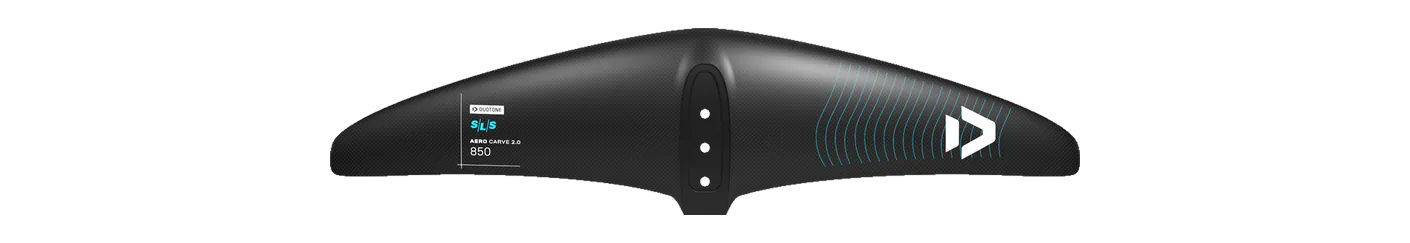

Duotone Aero Carve 2.0 SLS 850
- Discontinuedsuperseded or no longer in the brand’s current range
- 850area, cm²
- 750span, mm
- 6.70aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Aero Carve Brand’s category Surf / carve Disciplines wing, prone, kite SLS · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Ascent V3 M (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Aero Carve 2.0 SLS has run 3 sizes, 850–1,430 cm², including discontinued sizes; aspect ratio moves 6.0–6.7 across the range.
Its 750 mm span is 16% narrower than typical for the area — the median across the 127 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Universal Mantaray Front Wing Y30 850 | 850 | +0.0% | 6.70 | +0.0% | 760 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | -1.2% | 6.50 | -3.0% | 740 | Mid-low aspect |
| GONG | Ascent V3 M | 870 | +2.4% | 7.00 | +4.5% | 780 | Mid-low aspect |
| GONG | X-Over V3 M | 850 | +0.0% | 6.40 | -4.5% | 740 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 740 | 883 | +3.9% | 6.49 | -3.1% | 740 | Mid-low aspect |
| Axis | Spitfire 720 | 815 | -4.1% | 6.47 | -3.4% | 720 | Mid-low aspect |
| Naish | Ultra Jet Front Wing 850 | 850 | +0.0% | 6.20 | -7.5% | 725 | Mid-low aspect |
| North | Sonar MA850v2 | 850 | +0.0% | 7.20 | +7.5% | 780 | Mid-low aspect |
| RRD | Blaze LTE Front Wing Y30 850 | 850 | +0.0% | 6.20 | -7.5% | 725 | Mid-low aspect |
Specifications
| Family | Aero Carve |
|---|---|
| Size | 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 750 |
| Chord, mm | — |
| Aspect ratio | 6.70 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | SLS |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
