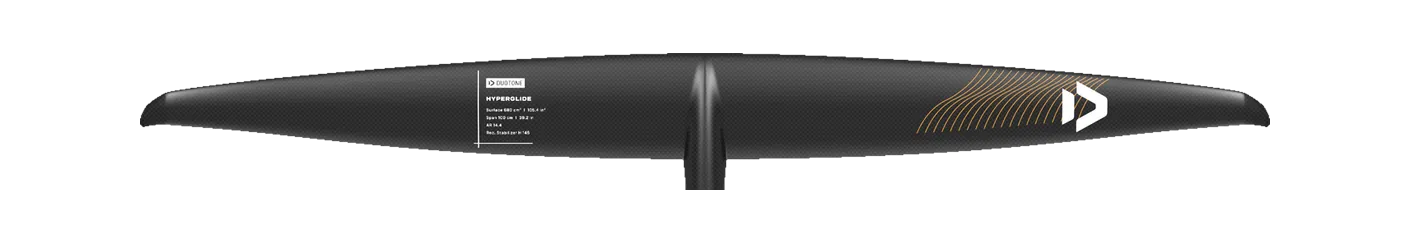

Duotone Hyperglide D/LAB 880

880area, cm²
1,130span, mm
14.20aspect ratio
Very highaspect · AR 11.5 – 15.0

Family Hyperglide Brand’s category Downwind Disciplines downwind D/LAB · 2025

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Veloce DW V3 Atmo M (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1AFS Ultra Front Wing 900no outlineSpecs · table ↓

Duotone Hyperglide D/LAB 880 · 1,130 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Veloce DW V3 Atmo M · 1,130 mm

Its 1,130 mm span is 27% wider than typical for the area — the median across the 138 current wings within 10% of its size is 890 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Duotone Hyperglide D/LAB 880, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
AFS	Ultra Front Wing 900	900	+2.3%	14.00	-1.4%	1,120	Very high aspect
GONG	Veloce DW V3 Atmo M	900	+2.3%	14.10	-0.7%	1,130	Very high aspect
RRD	Flying Fish HA Front Wing Y31 900	900	+2.3%	14.70	+3.5%	1,150	Very high aspect
Unifoil	Quest 135	870	-1.1%	13.40	-5.6%	1,078	Very high aspect
GONG	Veloce HDW V3 M	900	+2.3%	13.30	-6.3%	1,090	Very high aspect
Levitaz	Front Wing FS 900	900	+2.3%	13.30	-6.3%	1,100	Very high aspect
Axis	Fireball ULTRA 1070	877	-0.3%	13.07	-8.0%	1,070	Very high aspect

Specifications

Every figure is Duotone's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Hyperglide
Size	880
Area, cm²	880
Area basis	unknown
Span, mm	1,130
Chord, mm	—
Aspect ratio	14.20
Band	Very high aspect
Brand’s category	Downwind
Disciplines	downwind
Construction	D/LAB
Model year	2025
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
