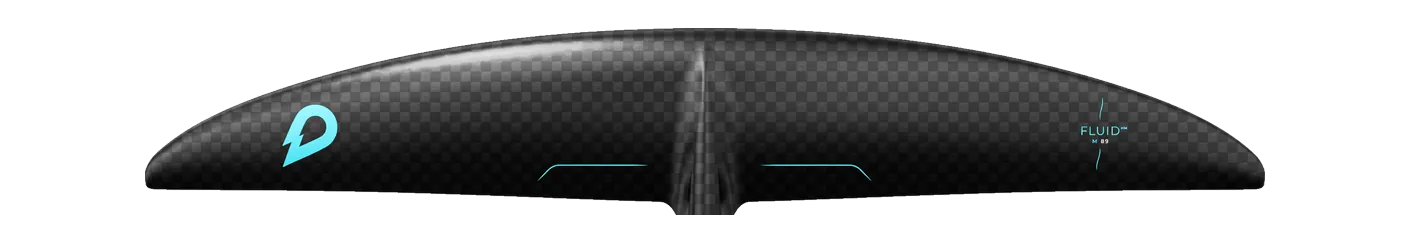

GONG Fluid V3 Atmo 3XL (Team / Carbon HM)
- 1,460area, cm²
- 1,120span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Fluid Chord 174 mm Brand’s category Surf / carve Disciplines wing, prone, sup, kite Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Spitfire 1100, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fluid V3 Atmo runs 9 sizes, 510–1,460 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,120 mm span is typical for the area: the median across the 80 current wings within 10% of its size is 1,122 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire 1100 | 1,423 | -2.5% | 8.66 | -0.5% | 1,100 | Mid aspect |
| Takoon | Flare Front Wing 1400 | 1,400 | -4.1% | 8.60 | -1.1% | 1,100 | Mid aspect |
| Takuma | Kujira II Front Wing 1400 | 1,400 | -4.1% | 8.60 | -1.1% | 1,096 | Mid aspect |
| Slingshot | One-Lock Glide 1525 | 1,525 | +4.5% | 9.00 | +3.4% | 1,169 | Mid aspect |
Specifications
| Family | Fluid |
|---|---|
| Size | 3XL |
| Area, cm² | 1,460 |
| Area basis | unknown |
| Span, mm | 1,120 |
| Chord, mm | 174 |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, sup, kite |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
