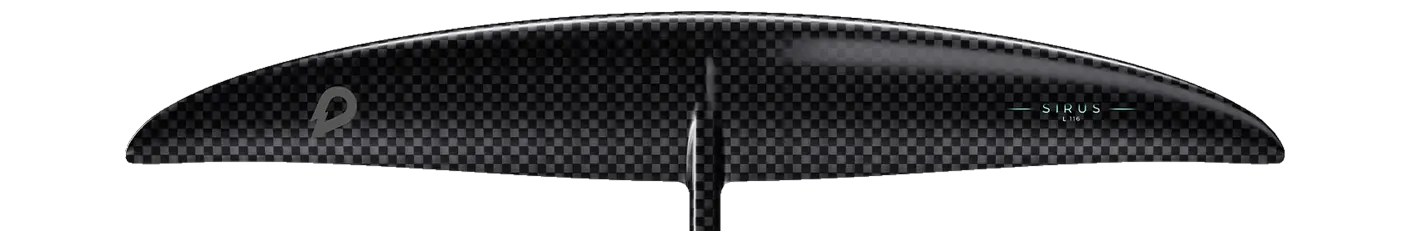

GONG Sirus V3 L
- 1,450area, cm²
- 1,160span, mm
- 9.30aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Sirus Area basis projected Chord 170 mm Brand’s category Pump / dock Disciplines pump, sup, prone, downwind, wing, kite Team / Carbon HM · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Spitfire 1100, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Sirus V3 runs 5 sizes, 1,450–3,100 cm², and changes proportion as it grows: aspect ratio runs 9.3 at one end of the range to 20.1 at the other, so its sizes differ in shape as well as in area.
Its 1,160 mm span is 5% wider than typical for the area — the median across the 76 current wings within 10% of its size is 1,105 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire 1100 | 1,423 | -1.9% | 8.66 | -6.9% | 1,100 | Mid aspect |
| Unifoil | Evolution 235 | 1,516 | +4.6% | 9.40 | +1.1% | 1,191 | Mid aspect |
| North | Sonar HA1450 | 1,450 | +0.0% | 10.00 | +7.5% | 1,200 | High aspect |
| Takoon | Flare Front Wing 1400 | 1,400 | -3.4% | 8.60 | -7.5% | 1,100 | Mid aspect |
| Takuma | Kujira II Front Wing 1400 | 1,400 | -3.4% | 8.60 | -7.5% | 1,096 | Mid aspect |
Specifications
| Family | Sirus |
|---|---|
| Size | L |
| Area, cm² | 1,450 |
| Area basis | projected |
| Span, mm | 1,160 |
| Chord, mm | 170 |
| Aspect ratio | 9.30 |
| Band | Mid aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump, sup, prone, downwind, wing, kite |
| Construction | Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
