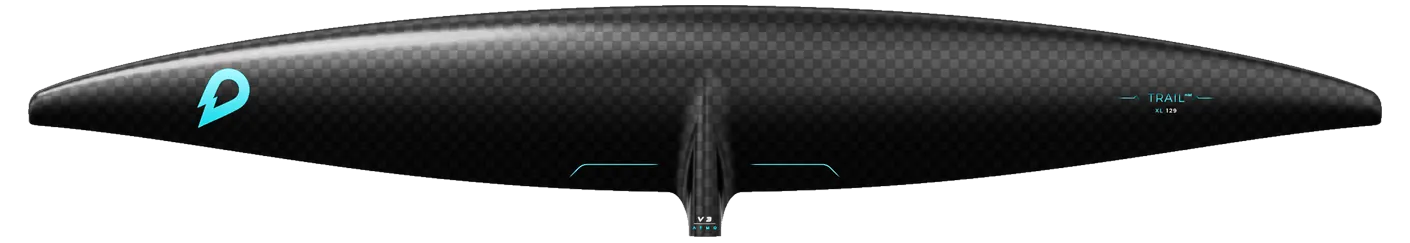

GONG Trail V3 Atmo XXL (Team / Carbon HM)
- 1,950area, cm²
- 1,400span, mm
- 10.10aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Trail Chord 193 mm Brand’s category Pump / dock Disciplines pump Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon Pump Front Wing 1900 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Trail V3 Atmo runs 4 sizes, 1,350–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,400 mm span is 8% wider than typical for the area — the median across the 50 current wings within 10% of its size is 1,300 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | JAM HM Carbon 1900 | 1,900 | -2.6% | 10.50 | +4.0% | 1,400 | High aspect |
| Takoon | Pump Front Wing 1900 | 1,900 | -2.6% | 10.50 | +4.0% | 1,410 | High aspect |
| RRD | Universal Moonfish Front Wing Y30 1900 | 1,900 | -2.6% | 9.60 | -5.0% | 1,350 | High aspect |
| Sabfoil | Leviathan 1350 | 1,870 | -4.1% | 9.75 | -3.5% | 1,350 | High aspect |
| Sabfoil | Leviathan Blackbird The 1350 | 1,864 | -4.4% | 9.80 | -3.0% | 1,350 | High aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XXL |
| Area, cm² | 1,950 |
| Area basis | unknown |
| Span, mm | 1,400 |
| Chord, mm | 193 |
| Aspect ratio | 10.10 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
