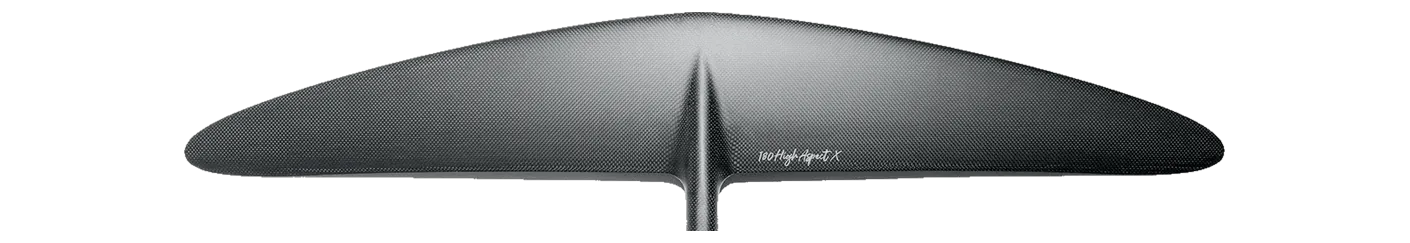

Lift Foils 180 High Aspect X Front Wing
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,161area, cm²
- 1,041span, mm
- 9.30aspect ratio
- Midaspect · AR 8.5 – 9.5
Family High Aspect X Brand’s category Glide / high aspect Disciplines downwind, prone, efoil carbon · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the KT Foiling Nomad 1160, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The High Aspect X has run 4 sizes, 710–1,419 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 8.4 at one end of the range to 13.1 at the other, so its sizes differ in shape as well as in area.
Its 1,041 mm span is 3% wider than typical for the area — the median across the 123 current wings within 10% of its size is 1,010 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| KT Foiling | Nomad 1160 | 1,160 | -0.1% | 9.50 | +2.2% | 1,050 | Mid aspect |
| AFS | Silk V2 Front Wing 1150 | 1,150 | -0.9% | 9.00 | -3.2% | 1,017 | Mid aspect |
| Armstrong | HA (High Aspect) HA1180 | 1,180 | +1.6% | 9.63 | +3.5% | 1,066 | High aspect |
| F-One | EAGLE HM Carbon 1190 | 1,190 | +2.5% | 9.40 | +1.1% | 1,060 | Mid aspect |
| Code Foils | S Series Front Wing 1130S | 1,130 | -2.7% | 9.50 | +2.2% | 1,035 | Mid aspect |
| Unifoil | Evolution 175 | 1,129 | -2.8% | 9.40 | +1.1% | 1,028 | Mid aspect |
| Slingshot | One-Lock Glide 1125 | 1,125 | -3.1% | 8.90 | -4.3% | 999 | Mid aspect |
| GONG | Fluid V3 Atmo XL (Team / Carbon HM) | 1,160 | -0.1% | 8.70 | -6.5% | 1,000 | Mid aspect |
| Duotone | Crest D/LAB 1200 | 1,200 | +3.4% | 8.60 | -7.5% | 1,020 | Mid aspect |
Specifications
| Family | High Aspect X |
|---|---|
| Size | 180 |
| Area, cm² | 1,161 |
| Area basis | unknown |
| Span, mm | 1,041 |
| Chord, mm | — |
| Aspect ratio | 9.30 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | downwind, prone, efoil |
| Construction | carbon |
| Model year | 2024 |
| Source | manufacturer · read 2026-09-11 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
