Fast Bobby · wings · Lift Foils · discontinued

Lift Foils 200 High Aspect Front Wing

Discontinuedsuperseded or no longer in the brand’s current range
1,290area, cm²
940span, mm
6.80aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family High Aspect (discontinued) Brand’s category Glide / high aspect Disciplines prone, efoil, wing carbon · 2022

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Leviathan 950, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

9North Sonar SF1230no outline10RRD Universal Mantaray Front Wing Y30 1350no outlineSpecs · table ↓

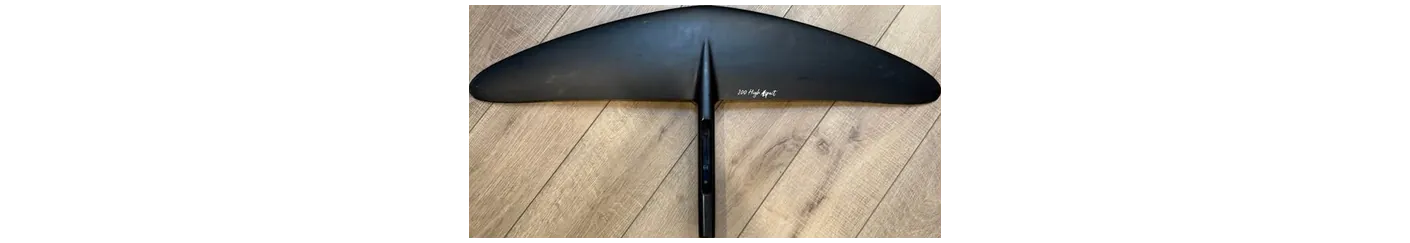

Lift Foils 200 High Aspect Front Wing · 940 mm span · traced from a photograph published with a review · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Sabfoil Leviathan 950 · 950 mm

Its 940 mm span is 11% narrower than typical for the area — the median across the 104 current wings within 10% of its size is 1,052 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Lift Foils 200 High Aspect Front Wing, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Sabfoil	Leviathan 950	1,300	+0.8%	6.68	-1.8%	950	Mid-low aspect
Axis	PNG (Pump and Glide) 910	1,267	-1.8%	6.80	+0.0%	910	Mid-low aspect
GONG	Ascent V3 XL	1,290	+0.0%	7.00	+2.9%	950	Mid-low aspect
Duotone	Carve 3.0 SLS 1300	1,300	+0.8%	6.50	-4.4%	920	Mid-low aspect
KT Foiling	Instinct 1300	1,300	+0.8%	7.16	+5.3%	965	Mid-low aspect
Axis	BSC (Broad Spectrum Carve) 890	1,290	+0.0%	6.43	-5.4%	890	Mid-low aspect
Duotone	Free 2.0 1300	1,300	+0.8%	7.20	+5.9%	970	Mid-low aspect
Takoon	X-Glide V2 Front Wing 1250	1,250	-3.1%	7.20	+5.9%	950	Mid-low aspect
North	Sonar SF1230	1,230	-4.7%	7.10	+4.4%	930	Mid-low aspect
RRD	Universal Mantaray Front Wing Y30 1350	1,350	+4.7%	6.70	-1.5%	930	Mid-low aspect

Specifications

Every figure is read from the source linked in the last row — a published review, not Lift Foils's own specification — converted to area in cm² and span in mm.
Family	High Aspect (discontinued)
Size	200
Area, cm²	1,290
Area basis	unknown
Span, mm	940
Chord, mm	—
Aspect ratio	6.80
Band	Mid-low aspect
Brand’s category	Glide / high aspect
Disciplines	prone, efoil, wing
Construction	carbon
Model year	2022
Source	review

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. The figures above are read from a published review rather than Lift Foils's own pages, converted to comparable units.
