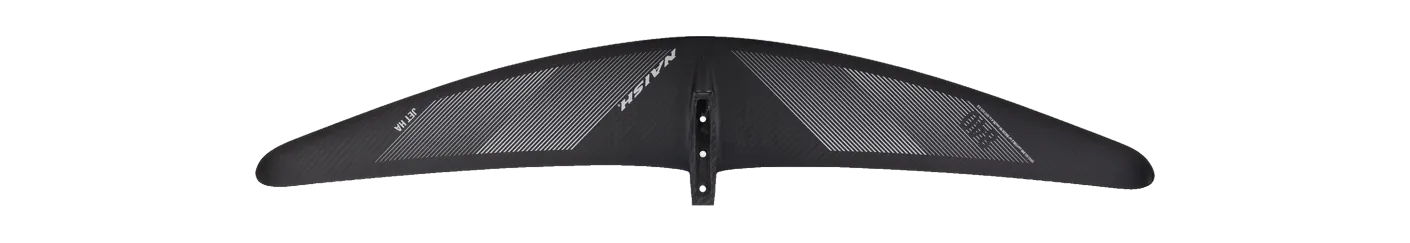

Naish Jet HA Front Wing 840
- 840area, cm²
- 900span, mm
- 9.80aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Jet HA Area basis projected Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, kite carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis ART (AXIS Research Team) 899, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Jet HA Front Wing runs 7 sizes, 640–1,840 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 10.2 at the other, so its sizes differ in shape as well as in area.
Its 900 mm span is typical for the area: the median across the 119 current wings within 10% of its size is 889 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | ART (AXIS Research Team) 899 | 850 | +1.2% | 9.76 | -0.4% | 899 | High aspect |
| North | Sonar HA850 | 850 | +1.2% | 10.00 | +2.0% | 920 | High aspect |
| Cabrinha | Fusion H-Series MkII H850 | 850 | +1.2% | 9.53 | -2.8% | 900 | High aspect |
| Axis | Surge 890 | 835 | -0.6% | 9.50 | -3.1% | 890 | Mid aspect |
| Code Foils | S Series Front Wing 850S | 850 | +1.2% | 9.50 | -3.1% | 900 | Mid aspect |
| Omen | Operator 850 | 850 | +1.2% | 9.50 | -3.1% | 900 | Mid aspect |
| Unifoil | Evolution 135 | 871 | +3.7% | 9.40 | -4.1% | 903 | Mid aspect |
| Sabfoil | Razor PRO 875 | 843 | +0.4% | 9.20 | -6.1% | 880 | Mid aspect |
| Unifoil | Progression 125 | 806 | -4.0% | 10.00 | +2.0% | 898 | High aspect |
| Armstrong | HA (High Aspect) HA880 | 880 | +4.8% | 9.68 | -1.2% | 923 | High aspect |
| Cabrinha | Fusion H-Series MkII H800 | 800 | -4.8% | 9.90 | +1.0% | 900 | High aspect |
Specifications
| Family | Jet HA |
|---|---|
| Size | Jet HA 840 |
| Area, cm² | 840 |
| Area basis | projected |
| Span, mm | 900 |
| Chord, mm | — |
| Aspect ratio | 9.80 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, kite |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
