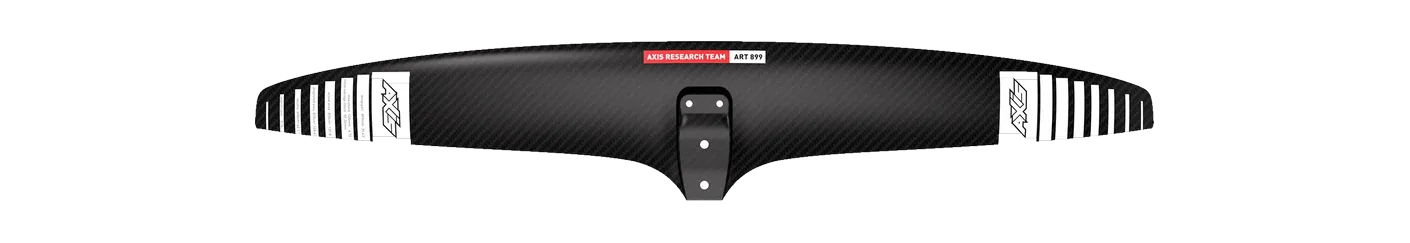

Axis ART (AXIS Research Team) 899
- 850area, cm²
- 899span, mm
- 9.76aspect ratio
- Highaspect · AR 9.5 – 11.5
Family ART Area basis flat Chord 120 mm Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, pump carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Jet HA Front Wing 840, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The ART runs 5 sizes, 556–1,144 cm²; aspect ratio moves 9.0–10.6 across the range.
Its 899 mm span is typical for the area: the median across the 126 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Jet HA Front Wing 840 | 840 | -1.2% | 9.80 | +0.4% | 900 | High aspect |
| Cabrinha | Fusion H-Series MkII H850 | 850 | +0.0% | 9.53 | -2.4% | 900 | High aspect |
| North | Sonar HA850 | 850 | +0.0% | 10.00 | +2.5% | 920 | High aspect |
| Code Foils | S Series Front Wing 850S | 850 | +0.0% | 9.50 | -2.7% | 900 | Mid aspect |
| Omen | Operator 850 | 850 | +0.0% | 9.50 | -2.7% | 900 | Mid aspect |
| Unifoil | Evolution 135 | 871 | +2.5% | 9.40 | -3.7% | 903 | Mid aspect |
| Armstrong | HA (High Aspect) HA880 | 880 | +3.5% | 9.68 | -0.8% | 923 | High aspect |
| Sabfoil | Razor PRO 875 | 843 | -0.8% | 9.20 | -5.7% | 880 | Mid aspect |
| F-One | EAGLE HM Carbon 890 | 890 | +4.7% | 9.60 | -1.6% | 925 | High aspect |
| GONG | Veloce V3 Atmo M | 890 | +4.7% | 10.10 | +3.5% | 950 | High aspect |
| AFS | Silk V2 Front Wing 850 | 850 | +0.0% | 9.00 | -7.8% | 875 | Mid aspect |
| North | Sonar SF830 | 830 | -2.4% | 9.00 | -7.8% | 865 | Mid aspect |
Specifications
| Family | ART |
|---|---|
| Size | ART 899 |
| Area, cm² | 850 |
| Area basis | flat |
| Span, mm | 899 |
| Chord, mm | 120 |
| Aspect ratio | 9.76 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, pump |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
