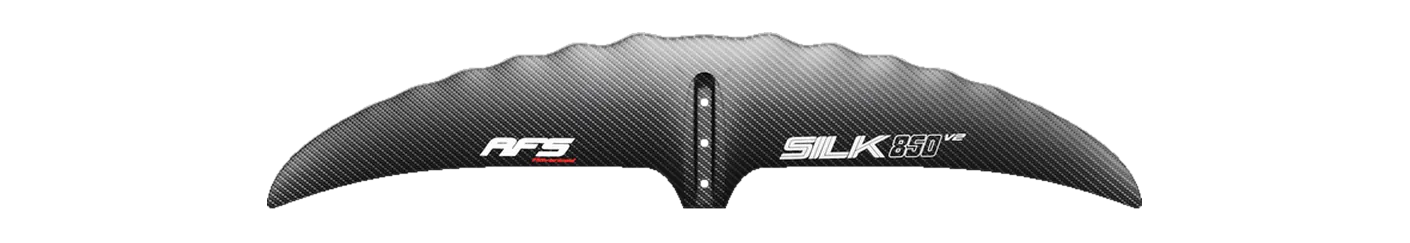

AFS Silk V2 Front Wing 850
- 850area, cm²
- 875span, mm
- 9.00aspect ratio
- Midaspect · AR 8.5 – 9.5
Family SILK Chord 132 mm Brand’s category Surf / carve Disciplines prone, wing, sup HR Carbon / Corecell Core · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Medusa PRO 869, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Silk V2 Front Wing runs 6 sizes, 650–1,150 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 875 mm span is 2% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 894 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Medusa PRO 869 | 854 | +0.5% | 8.84 | -1.8% | 869 | Mid aspect |
| Sabfoil | Razor PRO 875 | 843 | -0.8% | 9.20 | +2.2% | 880 | Mid aspect |
| Duotone | Whizz SLS 850 | 850 | +0.0% | 8.70 | -3.3% | 860 | Mid aspect |
| KT Foiling | Nomad 830 | 830 | -2.4% | 8.90 | -1.1% | 860 | Mid aspect |
| North | Sonar SF830 | 830 | -2.4% | 9.00 | +0.0% | 865 | Mid aspect |
| Unifoil | Evolution 135 | 871 | +2.5% | 9.40 | +4.4% | 903 | Mid aspect |
| Slingshot | One-Lock Glide 825 | 825 | -2.9% | 8.80 | -2.2% | 850 | Mid aspect |
| Axis | Surge 890 | 835 | -1.8% | 9.50 | +5.6% | 890 | Mid aspect |
| Code Foils | S Series Front Wing 850S | 850 | +0.0% | 9.50 | +5.6% | 900 | Mid aspect |
| Omen | Operator 850 | 850 | +0.0% | 9.50 | +5.6% | 900 | Mid aspect |
| Cabrinha | Fusion H-Series MkII H850 | 850 | +0.0% | 9.53 | +5.9% | 900 | High aspect |
| GONG | Curve H V3 FG S | 820 | -3.5% | 8.40 | -6.7% | 830 | Mid-low aspect |
| F-One | EAGLE HM Carbon 890 | 890 | +4.7% | 9.60 | +6.7% | 925 | High aspect |
| GONG | Fluid H V3 FG S | 810 | -4.7% | 8.40 | -6.7% | 820 | Mid-low aspect |
| GONG | Fluid V3 Atmo S (Team / Carbon HM) | 810 | -4.7% | 8.70 | -3.3% | 840 | Mid aspect |
| Armstrong | HA (High Aspect) HA880 | 880 | +3.5% | 9.68 | +7.6% | 923 | High aspect |
| Takoon | Flare Front Wing 850 | 850 | +0.0% | 8.30 | -7.8% | 840 | Mid-low aspect |
Specifications
| Family | SILK |
|---|---|
| Size | Silk 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 875 |
| Chord, mm | 132 |
| Aspect ratio | 9.00 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | HR Carbon / Corecell Core |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
