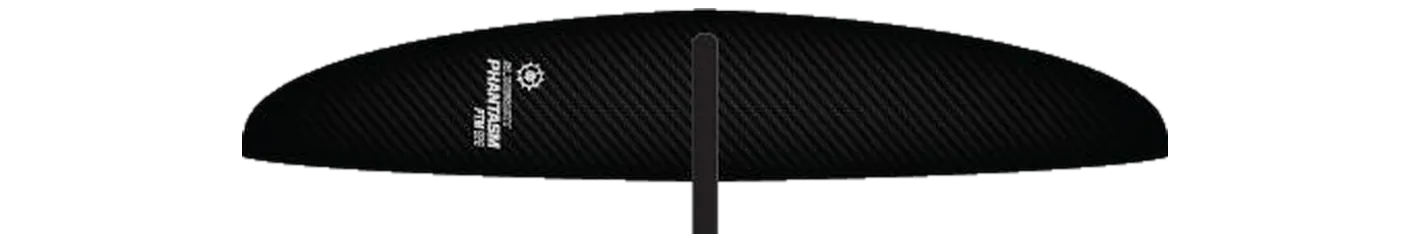

Slingshot PTM 926
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,263area, cm²
- 926span, mm
- 6.79aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Phantasm PTM Brand’s category Surf / carve Disciplines wing, sup, wake, pump carbon · 2022
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis PNG (Pump and Glide) 910, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Phantasm PTM has run 9 sizes, 655–1,263 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.9 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 926 mm span is 10% narrower than typical for the area — the median across the 104 current wings within 10% of its size is 1,030 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | PNG (Pump and Glide) 910 | 1,267 | +0.3% | 6.80 | +0.1% | 910 | Mid-low aspect |
| GONG | Ascent V3 XL | 1,290 | +2.1% | 7.00 | +3.1% | 950 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | -2.6% | 7.10 | +4.6% | 930 | Mid-low aspect |
| Duotone | Carve 3.0 SLS 1300 | 1,300 | +2.9% | 6.50 | -4.3% | 920 | Mid-low aspect |
| Sabfoil | Leviathan 950 | 1,300 | +2.9% | 6.68 | -1.6% | 950 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 890 | 1,290 | +2.1% | 6.43 | -5.3% | 890 | Mid-low aspect |
| KT Foiling | Instinct 1300 | 1,300 | +2.9% | 7.16 | +5.4% | 965 | Mid-low aspect |
| Duotone | Free 2.0 1300 | 1,300 | +2.9% | 7.20 | +6.0% | 970 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | -1.0% | 7.20 | +6.0% | 950 | Mid-low aspect |
| North | Sonar MA1200v2 | 1,200 | -5.0% | 6.40 | -5.7% | 875 | Mid-low aspect |
Specifications
| Family | Phantasm PTM |
|---|---|
| Size | 926 |
| Area, cm² | 1,263 |
| Area basis | unknown |
| Span, mm | 926 |
| Chord, mm | — |
| Aspect ratio | 6.79 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, sup, wake, pump |
| Construction | carbon |
| Model year | 2022 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
