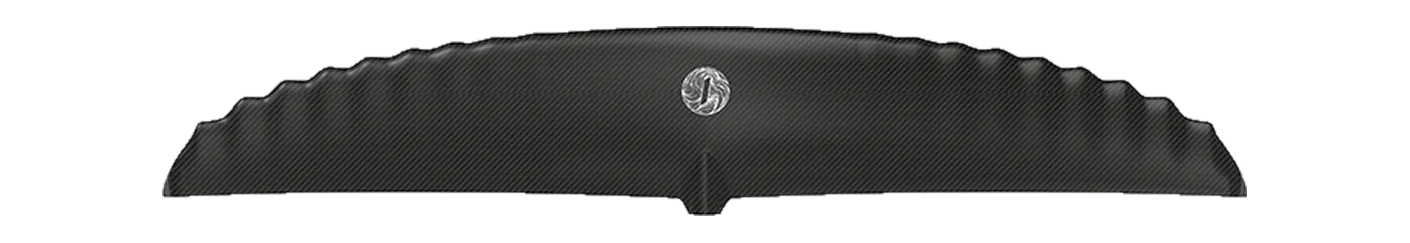

Takuma Kujira Front Wing 1440
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,440area, cm²
- 1,085span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Kujira Chord 170 mm Brand’s category All-round / freeride Disciplines downwind, wing, sup full carbon · 2021-2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Jet HA Front Wing 1440, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Kujira Front Wing has run 6 sizes, 500–1,440 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 5.9 at one end of the range to 8.3 at the other, so its sizes differ in shape as well as in area.
Its 1,085 mm span is typical for the area: the median across the 88 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Jet HA Front Wing 1440 | 1,440 | +0.0% | 8.00 | -2.4% | 1,070 | Mid-low aspect |
| GONG | Fluid H V3 FG 3XL | 1,460 | +1.4% | 8.40 | +2.4% | 1,110 | Mid-low aspect |
| Duotone | Whizz SLS 1450 | 1,450 | +0.7% | 7.90 | -3.7% | 1,070 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1400 | 1,400 | -2.8% | 8.00 | -2.4% | 1,055 | Mid-low aspect |
| Takoon | Flare Front Wing 1400 | 1,400 | -2.8% | 8.60 | +4.9% | 1,100 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1390 | 1,390 | -3.5% | 8.00 | -2.4% | 1,060 | Mid-low aspect |
| Axis | Spitfire 1100 | 1,423 | -1.2% | 8.66 | +5.6% | 1,100 | Mid aspect |
| GONG | Fluid V3 Atmo 3XL (Team / Carbon HM) | 1,460 | +1.4% | 8.70 | +6.1% | 1,120 | Mid aspect |
| F-One | SEVEN SEAS Carbon 1500 | 1,500 | +4.2% | 8.00 | -2.4% | 1,095 | Mid-low aspect |
| AFS | Evo Front Wing 1450 | 1,450 | +0.7% | 7.60 | -7.3% | 1,040 | Mid-low aspect |
| GONG | Curve H V3 FG XXL | 1,370 | -4.9% | 8.40 | +2.4% | 1,070 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 1050 | 1,502 | +4.3% | 7.55 | -7.9% | 1,050 | Mid-low aspect |
Specifications
| Family | Kujira |
|---|---|
| Size | Kujira 1440 |
| Area, cm² | 1,440 |
| Area basis | unknown |
| Span, mm | 1,085 |
| Chord, mm | 170 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | downwind, wing, sup |
| Construction | full carbon |
| Model year | 2021-2024 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
