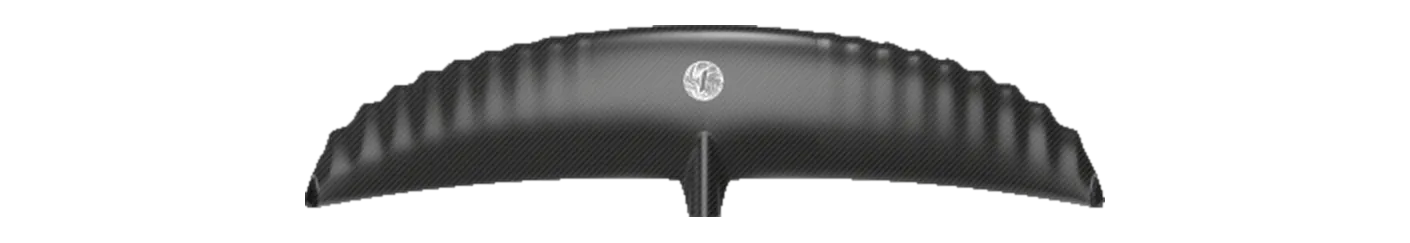

Takuma Kujira Front Wing 980
- Discontinuedsuperseded or no longer in the brand’s current range
- 980area, cm²
- 800span, mm
- 6.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Kujira Chord 155 mm Brand’s category All-round / freeride Disciplines wing, prone, downwind full carbon · 2021-2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Sabfoil Sea Devil 780 Blackbird (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Kujira Front Wing has run 6 sizes, 500–1,440 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 5.9 at one end of the range to 8.3 at the other, so its sizes differ in shape as well as in area.
Its 800 mm span is 16% narrower than typical for the area — the median across the 134 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | PHANTOM Carbon 980 | 980 | +0.0% | 6.20 | -4.6% | 780 | Mid-low aspect |
| RRD | Blaze LTE Front Wing Y30 950 | 950 | -3.1% | 6.50 | +0.0% | 790 | Mid-low aspect |
| Sabfoil | Sea Devil 780 Blackbird | 950 | -3.1% | 6.40 | -1.5% | 780 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 950 | 950 | -3.1% | 6.90 | +6.2% | 810 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 940 | 940 | -4.1% | 6.50 | +0.0% | 780 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 830 | 1,014 | +3.5% | 7.00 | +7.7% | 830 | Mid-low aspect |
| ENSIS | PACER Front Wing 950 | 950 | -3.1% | 6.00 | -7.7% | 754 | Low aspect |
| Lift Foils | Grubb 150 Front Wing | 968 | -1.2% | 6.00 | -7.7% | 762 | Low aspect |
Specifications
| Family | Kujira |
|---|---|
| Size | Kujira 980 |
| Area, cm² | 980 |
| Area basis | unknown |
| Span, mm | 800 |
| Chord, mm | 155 |
| Aspect ratio | 6.50 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, downwind |
| Construction | full carbon |
| Model year | 2021-2024 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
