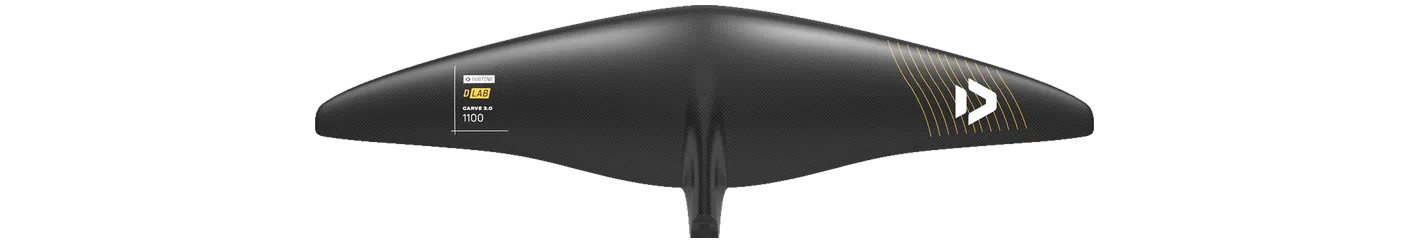

Duotone Carve 3.0 D/LAB 1100

1,100area, cm²
860span, mm
6.70aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Carve Brand’s category Surf / carve Disciplines wing, prone, kite D/LAB · 2025

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis PNG (Pump and Glide) 850, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

7North Sonar MA1050v2no outline8RRD Universal Mantaray Front Wing Y30 1050no outlineSpecs · table ↓

Duotone Carve 3.0 D/LAB 1100 · 860 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis PNG (Pump and Glide) 850 · 850 mm

The Carve 3.0 D/LAB runs 5 sizes, 500–1,100 cm²; aspect ratio moves 6.7–7.4 across the range.

Its 860 mm span is 14% narrower than typical for the area — the median across the 123 current wings within 10% of its size is 1,000 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Duotone Carve 3.0 D/LAB 1100, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Axis	PNG (Pump and Glide) 850	1,102	+0.2%	6.81	+1.6%	850	Mid-low aspect
Axis	BSC (Broad Spectrum Carve) 810	1,070	-2.7%	6.42	-4.2%	810	Mid-low aspect
GONG	Ascent V3 L	1,080	-1.8%	7.00	+4.5%	870	Mid-low aspect
GONG	X-Over V3 L	1,100	+0.0%	6.40	-4.5%	840	Mid-low aspect
GONG	X-Over V3 Atmo L	1,108	+0.7%	6.40	-4.5%	840	Mid-low aspect
Axis	HPS (High Performance Speed) 880	1,112	+1.1%	7.17	+7.0%	880	Mid-low aspect
North	Sonar MA1050v2	1,050	-4.5%	6.90	+3.0%	850	Mid-low aspect
RRD	Universal Mantaray Front Wing Y30 1050	1,050	-4.5%	6.70	+0.0%	840	Mid-low aspect
Takoon	X-Glide V2 Front Wing 1050	1,050	-4.5%	7.20	+7.5%	870	Mid-low aspect

Specifications

Every figure is Duotone's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Carve
Size	1100
Area, cm²	1,100
Area basis	unknown
Span, mm	860
Chord, mm	—
Aspect ratio	6.70
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	wing, prone, kite
Construction	D/LAB
Model year	2025
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
