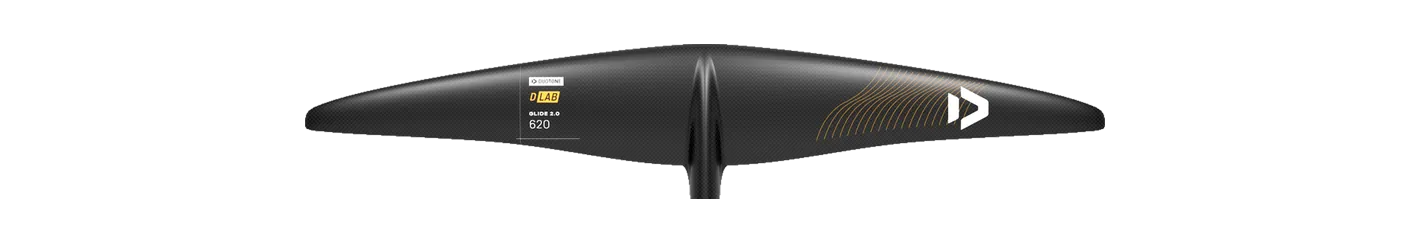

Duotone Glide 2.0 D/LAB 620 hydrofoil front wing: 620 cm², 800 mm span, aspect ratio 10.30, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Ypra Race Micro V3 Atmo 630 cm² | 630 | +1.6% | 10.40 | +1.0% | 809 | C4 High aspect |
| Naish | Jet HA Front Wing Jet HA 640 | 640 | +3.2% | 10.20 | -1.0% | 810 | C4 High aspect |
| Unifoil | Progression 100 Progression 100 | 645 | +4.0% | 10.50 | +1.9% | 824 | C4 High aspect |
| GONG | Veloce V3 Atmo XS | 590 | -4.8% | 10.10 | -1.9% | 770 | C4 High aspect |
| North | Sonar HA650 HA650 | 650 | +4.8% | 10.10 | -1.9% | 810 | C4 High aspect |
| Takoon | Flow Front Wing 600 | 600 | -3.2% | 10.70 | +3.9% | 800 | C4 High aspect |
| Axis | ART v2 ART v2 819 | 647 | +4.4% | 9.98 | -3.1% | 820 | C4 High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo XS | 590 | -4.8% | 10.60 | +2.9% | 790 | C4 High aspect |
| Sabfoil | Razor PRO 775 Razor PRO 775 | 631 | +1.8% | 9.64 | -6.4% | 780 | C4 High aspect |
| Code Foils | S Series Front Wing 615S | 615 | -0.8% | 9.50 | -7.8% | 765 | C3 Mid aspect |
| AFS | Enduro Front Wing Enduro 600 | 600 | -3.2% | 11.00 | +6.8% | 813 | C4 High aspect |
| Slingshot | One-Lock Flow 600 | 600 | -3.2% | 11.00 | +6.8% | 813 | C4 High aspect |
| Axis | Surge Surge 780 | 643 | +3.7% | 9.48 | -8.0% | 780 | C3 Mid aspect |
| Family | Glide |
|---|---|
| Size | 620 |
| Area, cm² | 620 |
| Area basis | unknown |
| Span, mm | 800 |
| Chord, mm | — |
| Aspect ratio | 10.30 |
| Band | C4 High aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | wing, downwind, pump |
| Construction | D/LAB |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
