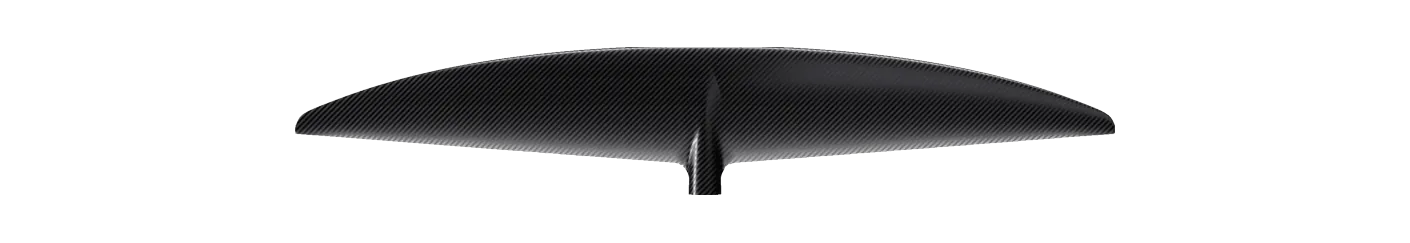

GONG Ypra Race V3 670 cm²
- 670area, cm²
- 820span, mm
- 9.90aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Ypra Area basis projected Chord 115 mm Brand’s category Race / freerace Disciplines race, kite, wing Pro Team / Carbon HM · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong HA (High Aspect) HA680, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Race V3 runs 4 sizes, 430–670 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 820 mm span is 5% wider than typical for the area — the median across the 92 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | HA (High Aspect) HA680 | 680 | +1.5% | 10.00 | +1.0% | 828 | High aspect |
| Takoon | Flash Front Wing 680 | 680 | +1.5% | 9.80 | -1.0% | 815 | High aspect |
| F-One | EAGLE HM Carbon 690 | 690 | +3.0% | 9.70 | -2.0% | 820 | High aspect |
| North | Sonar HA650 | 650 | -3.0% | 10.10 | +2.0% | 810 | High aspect |
| Axis | ART v2 819 | 647 | -3.4% | 9.98 | +0.8% | 820 | High aspect |
| Duotone | Crest D/LAB 675 | 675 | +0.7% | 9.30 | -6.1% | 790 | Mid aspect |
| Unifoil | Progression 100 | 645 | -3.7% | 10.50 | +6.1% | 824 | High aspect |
| Axis | Surge 780 | 643 | -4.0% | 9.48 | -4.2% | 780 | Mid aspect |
| KT Foiling | Atlas 680 | 680 | +1.5% | 10.60 | +7.1% | 850 | High aspect |
| North | Sonar SF680 | 680 | +1.5% | 9.20 | -7.1% | 790 | Mid aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 700 | 700 | +4.5% | 9.60 | -3.0% | 820 | High aspect |
| Cabrinha | Fusion H-Series MkII H700 | 700 | +4.5% | 9.49 | -4.1% | 815 | Mid aspect |
| Naish | Jet HA Front Wing 640 | 640 | -4.5% | 10.20 | +3.0% | 810 | High aspect |
| Omen | Agent 700 | 700 | +4.5% | 10.10 | +2.0% | 843 | High aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | 670 cm² |
| Area, cm² | 670 |
| Area basis | projected |
| Span, mm | 820 |
| Chord, mm | 115 |
| Aspect ratio | 9.90 |
| Band | High aspect |
| Brand’s category | Race / freerace |
| Disciplines | race, kite, wing |
| Construction | Pro Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
