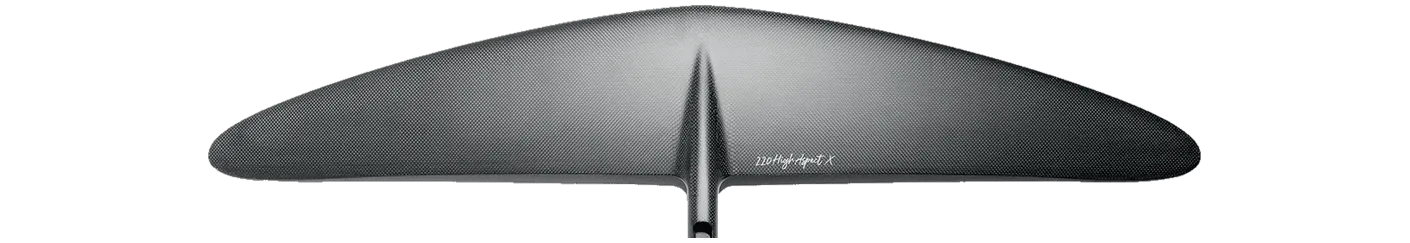

Lift Foils 220 High Aspect X Front Wing
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,419area, cm²
- 1,092span, mm
- 8.40aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family High Aspect X Brand’s category Glide / high aspect Disciplines downwind, prone, efoil carbon · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Takoon Flare Front Wing 1400, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The High Aspect X has run 4 sizes, 710–1,419 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 8.4 at one end of the range to 13.1 at the other, so its sizes differ in shape as well as in area.
Its 1,092 mm span is typical for the area: the median across the 94 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Flare Front Wing 1400 | 1,400 | -1.3% | 8.60 | +2.4% | 1,100 | Mid aspect |
| Takuma | Kujira II Front Wing 1400 | 1,400 | -1.3% | 8.60 | +2.4% | 1,096 | Mid aspect |
| Axis | Spitfire 1100 | 1,423 | +0.3% | 8.66 | +3.1% | 1,100 | Mid aspect |
| GONG | Fluid H V3 FG 3XL | 1,460 | +2.9% | 8.40 | +0.0% | 1,110 | Mid-low aspect |
| GONG | Fluid V3 Atmo 3XL (Team / Carbon HM) | 1,460 | +2.9% | 8.70 | +3.6% | 1,120 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1390 | 1,390 | -2.0% | 8.00 | -4.8% | 1,060 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1400 | 1,400 | -1.3% | 8.00 | -4.8% | 1,055 | Mid-low aspect |
| Naish | Jet HA Front Wing 1440 | 1,440 | +1.5% | 8.00 | -4.8% | 1,070 | Mid-low aspect |
| GONG | Curve H V3 FG XXL | 1,370 | -3.5% | 8.40 | +0.0% | 1,070 | Mid-low aspect |
| Duotone | Whizz SLS 1450 | 1,450 | +2.2% | 7.90 | -6.0% | 1,070 | Mid-low aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | -4.2% | 8.90 | +6.0% | 1,100 | Mid aspect |
| Sroka | S-Foil 1350 L HA | 1,350 | -4.9% | 9.00 | +7.1% | 1,100 | Mid aspect |
Specifications
| Family | High Aspect X |
|---|---|
| Size | 220 |
| Area, cm² | 1,419 |
| Area basis | unknown |
| Span, mm | 1,092 |
| Chord, mm | — |
| Aspect ratio | 8.40 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | downwind, prone, efoil |
| Construction | carbon |
| Model year | 2024 |
| Source | manufacturer · read 2026-09-11 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
