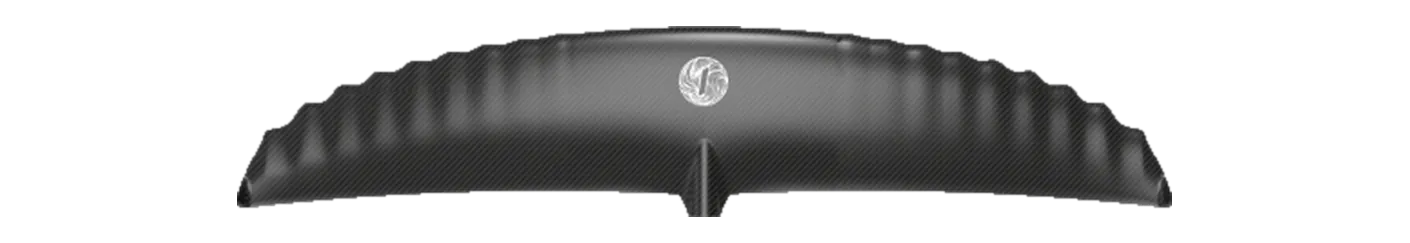

Takuma Kujira Front Wing 1210
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,210area, cm²
- 935span, mm
- 7.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Kujira Chord 162 mm Brand’s category All-round / freeride Disciplines wing, prone, sup full carbon · 2021-2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis HPS (High Performance Speed) 930, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Kujira Front Wing has run 6 sizes, 500–1,440 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 5.9 at one end of the range to 8.3 at the other, so its sizes differ in shape as well as in area.
Its 935 mm span is 8% narrower than typical for the area — the median across the 118 current wings within 10% of its size is 1,016 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 930 | 1,214 | +0.3% | 7.34 | +1.9% | 930 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | +1.7% | 7.10 | -1.4% | 930 | Mid-low aspect |
| Sroka | S-Foil 1190 L HA | 1,190 | -1.7% | 7.50 | +4.2% | 910 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +3.3% | 7.20 | +0.0% | 950 | Mid-low aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +3.3% | 7.60 | +5.6% | 970 | Mid-low aspect |
| Axis | PNG (Pump and Glide) 910 | 1,267 | +4.7% | 6.80 | -5.6% | 910 | Mid-low aspect |
Specifications
| Family | Kujira |
|---|---|
| Size | Kujira 1210 |
| Area, cm² | 1,210 |
| Area basis | unknown |
| Span, mm | 935 |
| Chord, mm | 162 |
| Aspect ratio | 7.20 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, sup |
| Construction | full carbon |
| Model year | 2021-2024 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
