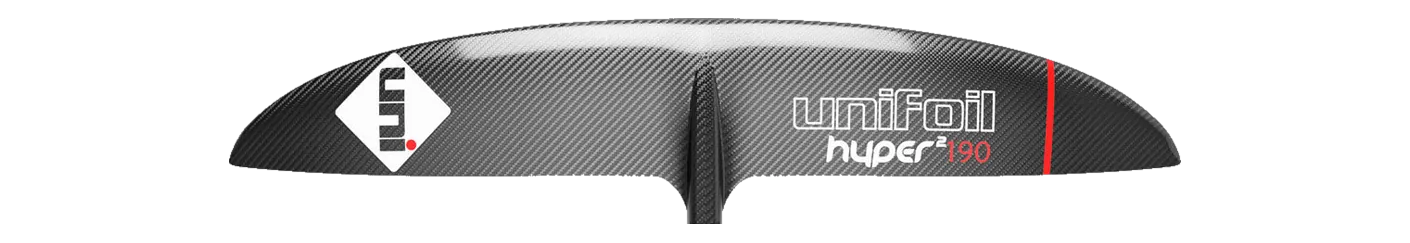

Unifoil Hyper2 190
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,226area, cm²
- 952span, mm
- 7.40aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Hyper2 (discontinued) Chord 157 mm Brand’s category Glide / high aspect Disciplines wing, pump, downwind carbon · 2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis HPS (High Performance Speed) 930, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Hyper2 has run 5 sizes, 968–1,613 cm², including discontinued sizes; aspect ratio moves 7.3–8.0 across the range.
Its 952 mm span is 7% narrower than typical for the area — the median across the 105 current wings within 10% of its size is 1,020 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 930 | 1,214 | -1.0% | 7.34 | -0.8% | 930 | Mid-low aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +2.0% | 7.60 | +2.7% | 970 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +2.0% | 7.20 | -2.7% | 950 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | +0.3% | 7.10 | -4.1% | 930 | Mid-low aspect |
| Sroka | S-Foil 1190 L HA | 1,190 | -2.9% | 7.50 | +1.4% | 910 | Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited Müller | 1,230 | +0.3% | 7.80 | +5.4% | 969 | Mid-low aspect |
| Axis | Spitfire 960 | 1,196 | -2.4% | 7.84 | +5.9% | 960 | Mid-low aspect |
Specifications
| Family | Hyper2 (discontinued) |
|---|---|
| Size | Hyper2 190 |
| Area, cm² | 1,226 |
| Area basis | unknown |
| Span, mm | 952 |
| Chord, mm | 157 |
| Aspect ratio | 7.40 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, pump, downwind |
| Construction | carbon |
| Model year | 2023 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
