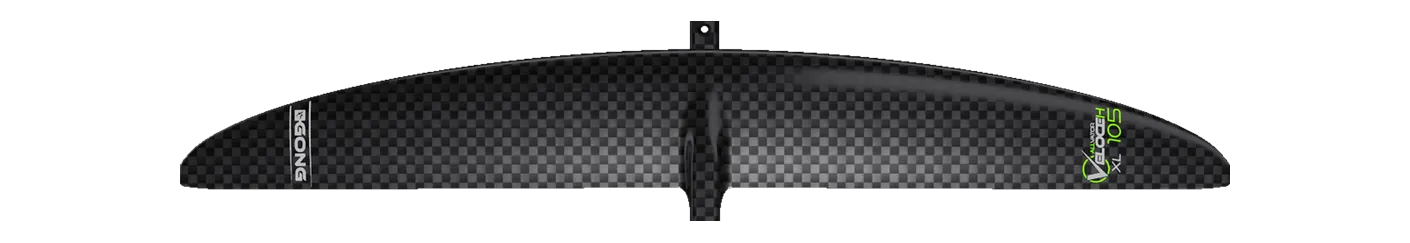

GONG Veloce H V2 (Allvator legacy) XL: a legacy wing, no longer in GONG's current range. 1,150 cm², 1,050 mm span, aspect ratio 9.59. The current wings from other brands that match it within ±5% area and ±8% aspect ratio. From GONG's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| KT Foiling | Nomad 1160 | 1,160 | +0.9% | 9.50 | -0.9% | 1,050 | C3 Mid aspect |
| Code Foils | S Series Front Wing 1130S | 1,130 | -1.7% | 9.50 | -0.9% | 1,035 | C3 Mid aspect |
| Armstrong | HA (High Aspect) HA1180 | 1,180 | +2.6% | 9.63 | +0.4% | 1,066 | C4 High aspect |
| Lift Foils | 180 Vario Front Wing | 1,161 | +1.0% | 9.80 | +2.2% | 1,067 | C4 High aspect |
| Unifoil | Evolution 175 | 1,129 | -1.8% | 9.40 | -2.0% | 1,028 | C3 Mid aspect |
| F-One | EAGLE HM Carbon 1190 | 1,190 | +3.5% | 9.40 | -2.0% | 1,060 | C3 Mid aspect |
| AFS | Silk V2 Front Wing 1150 | 1,150 | +0.0% | 9.00 | -6.2% | 1,017 | C3 Mid aspect |
| Naish | Excalibur HA Front Wing 1144 | 1,144 | -0.5% | 10.20 | +6.4% | 1,080 | C4 High aspect |
| Axis | Surge 1080 | 1,142 | -0.7% | 10.22 | +6.6% | 1,080 | C4 High aspect |
| Slingshot | One-Lock Glide 1125 | 1,125 | -2.2% | 8.90 | -7.2% | 999 | C3 Mid aspect |
| Duotone | Glide 2.0 SLS 1100 | 1,100 | -4.3% | 10.20 | +6.4% | 1,060 | C4 High aspect |
| Family | Veloce |
|---|---|
| Size | XL |
| Area, cm² | 1,150 |
| Area basis | unknown |
| Span, mm | 1,050 |
| Chord, mm | — |
| Aspect ratio | 9.59 |
| Band | C4 High aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | wing, downwind, pump, kite, prone |
| Construction | Pro Team / Carbon HM |
| Model year | — |
| Source | manufacturer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
See GONG on the plot →Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
