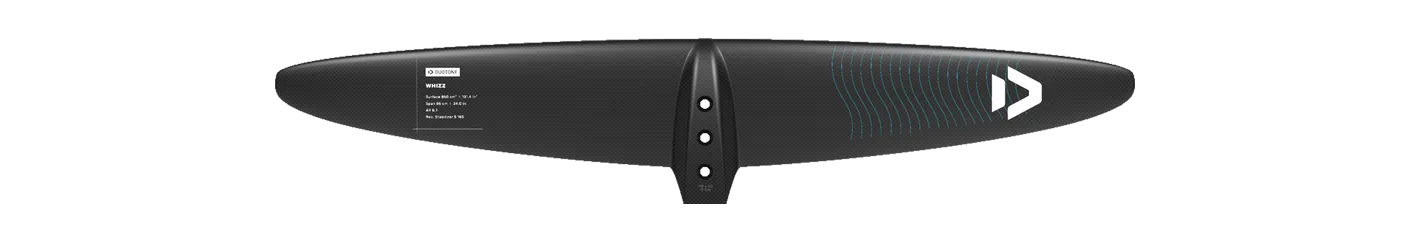

Duotone Whizz SLS 850
- 850area, cm²
- 860span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Whizz Brand’s category Surf / carve Disciplines prone, wake SLS · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Medusa PRO 869, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Whizz SLS runs 4 sizes, 850–1,450 cm²; aspect ratio moves 7.9–8.7 across the range.
Its 860 mm span is 4% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 894 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Medusa PRO 869 | 854 | +0.5% | 8.84 | +1.6% | 869 | Mid aspect |
| AFS | Silk V2 Front Wing 850 | 850 | +0.0% | 9.00 | +3.4% | 875 | Mid aspect |
| KT Foiling | Nomad 830 | 830 | -2.4% | 8.90 | +2.3% | 860 | Mid aspect |
| North | Sonar SF830 | 830 | -2.4% | 9.00 | +3.4% | 865 | Mid aspect |
| Takoon | Flare Front Wing 850 | 850 | +0.0% | 8.30 | -4.6% | 840 | Mid-low aspect |
| Slingshot | One-Lock Glide 825 | 825 | -2.9% | 8.80 | +1.1% | 850 | Mid aspect |
| GONG | Curve H V3 FG S | 820 | -3.5% | 8.40 | -3.4% | 830 | Mid-low aspect |
| GONG | Ypra Surf Carve V3 Atmo L | 820 | -3.5% | 8.20 | -5.7% | 820 | Mid-low aspect |
| Sabfoil | Razor PRO 875 | 843 | -0.8% | 9.20 | +5.7% | 880 | Mid aspect |
| Cabrinha | Whippit 850 | 850 | +0.0% | 8.10 | -6.9% | 830 | Mid-low aspect |
| Unifoil | Aggression 130 | 838 | -1.4% | 8.10 | -6.9% | 825 | Mid-low aspect |
| Code Foils | X Series Front Wing 810X | 810 | -4.7% | 8.20 | -5.7% | 814 | Mid-low aspect |
| Code Foils | X Series Front Wing 890X | 890 | +4.7% | 8.20 | -5.7% | 852 | Mid-low aspect |
| GONG | Fluid H V3 FG S | 810 | -4.7% | 8.40 | -3.4% | 820 | Mid-low aspect |
| GONG | Fluid V3 Atmo S (Team / Carbon HM) | 810 | -4.7% | 8.70 | +0.0% | 840 | Mid aspect |
Specifications
| Family | Whizz |
|---|---|
| Size | 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 860 |
| Chord, mm | — |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wake |
| Construction | SLS |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
