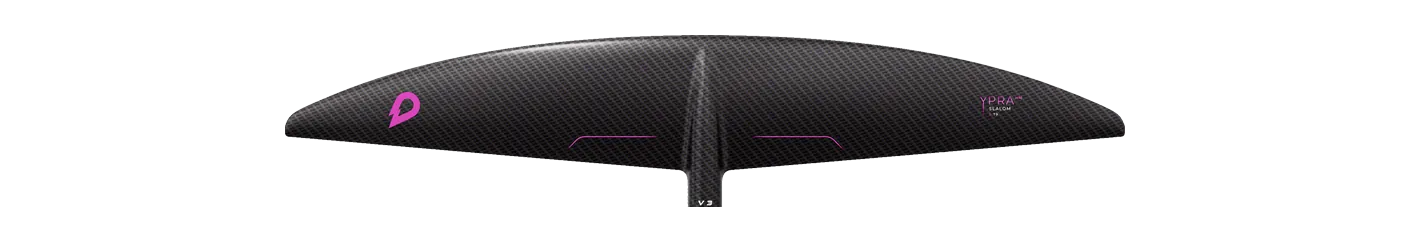

GONG Ypra Slalom V3 Atmo M
- 800area, cm²
- 840span, mm
- 8.90aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Ypra Chord 134 mm Brand’s category Race / freerace Disciplines wing, kite, race Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Crest D/LAB 800, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Slalom V3 Atmo runs 5 sizes, 500–900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 840 mm span is 2% narrower than typical for the area — the median across the 123 current wings within 10% of its size is 860 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Crest D/LAB 800 | 800 | +0.0% | 9.00 | +1.1% | 850 | Mid aspect |
| Sabfoil | Blackbird Razor 847 | 784 | -2.0% | 9.20 | +3.4% | 847 | Mid aspect |
| Slingshot | One-Lock Glide 825 | 825 | +3.1% | 8.80 | -1.1% | 850 | Mid aspect |
| Naish | Siren MA Front Wing 800 | 800 | +0.0% | 8.41 | -5.5% | 820 | Mid-low aspect |
| Duotone | Blitz D/LAB 800 | 800 | +0.0% | 8.40 | -5.6% | 810 | Mid-low aspect |
| KT Foiling | Nomad 830 | 830 | +3.8% | 8.90 | +0.0% | 860 | Mid aspect |
| North | Sonar SF830 | 830 | +3.8% | 9.00 | +1.1% | 865 | Mid aspect |
| F-One | EAGLE HM Carbon 790 | 790 | -1.2% | 9.50 | +6.7% | 865 | Mid aspect |
| Sabfoil | Blackbird 805 Balz Muller Signature | 792 | -1.0% | 8.30 | -6.7% | 805 | Mid-low aspect |
| Axis | Surge 890 | 835 | +4.4% | 9.50 | +6.7% | 890 | Mid aspect |
| Sabfoil | 808 Balz Muller Limited Müller | 792 | -1.0% | 8.26 | -7.2% | 808 | Mid-low aspect |
| Code Foils | X Series Front Wing 810X | 810 | +1.2% | 8.20 | -7.9% | 814 | Mid-low aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | M |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 840 |
| Chord, mm | 134 |
| Aspect ratio | 8.90 |
| Band | Mid aspect |
| Brand’s category | Race / freerace |
| Disciplines | wing, kite, race |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
