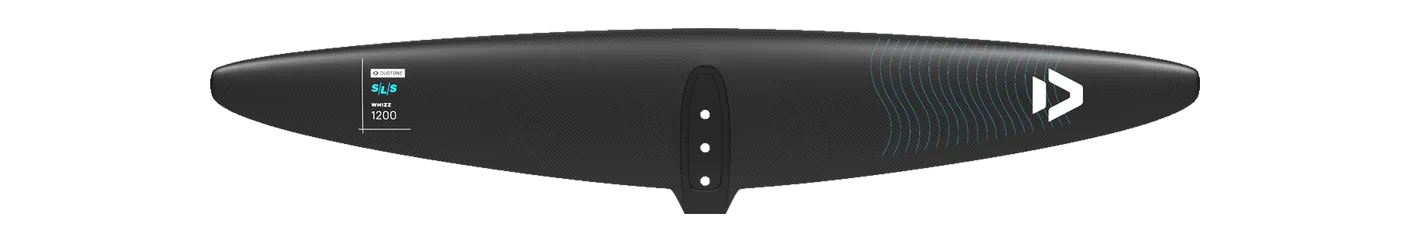

Duotone Whizz SLS 1200 hydrofoil front wing: 1,200 cm², 990 mm span, aspect ratio 8.20, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | X Series Front Wing 1195X | 1,195 | -0.4% | 8.20 | +0.0% | 987 | C2 Mid-low aspect |
| Naish | Siren MA Front Wing Siren 1200 | 1,200 | +0.0% | 8.33 | +1.6% | 1,000 | C2 Mid-low aspect |
| Sabfoil | Blackbird 965 Balz Muller Signature Blackbird 965 | 1,210 | +0.8% | 8.30 | +1.2% | 965 | C2 Mid-low aspect |
| F-One | SEVEN SEAS Carbon SEVEN SEAS 1200 | 1,200 | +0.0% | 8.00 | -2.4% | 980 | C2 Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | -0.8% | 8.00 | -2.4% | 990 | C2 Mid-low aspect |
| Takoon | Flare Front Wing 1200 | 1,200 | +0.0% | 8.50 | +3.7% | 1,015 | C2 Mid-low aspect |
| GONG | Curve H V3 FG XL | 1,220 | +1.7% | 8.40 | +2.4% | 1,010 | C2 Mid-low aspect |
| Axis | Spitfire Spitfire 960 | 1,196 | -0.3% | 7.84 | -4.4% | 960 | C2 Mid-low aspect |
| Takuma | Kujira II Front Wing Kujira II 1250 | 1,250 | +4.2% | 8.30 | +1.2% | 1,018 | C2 Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | +5.0% | 8.14 | -0.7% | 1,013 | C2 Mid-low aspect |
| GONG | Fluid H V3 FG XL | 1,160 | -3.3% | 8.40 | +2.4% | 990 | C2 Mid-low aspect |
| F-One | SK8 HM Carbon (T2) SK8 HM CARBON 1150 | 1,150 | -4.2% | 8.00 | -2.4% | 960 | C2 Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited 969 Balz Müller Limited | 1,230 | +2.5% | 7.80 | -4.9% | 969 | C2 Mid-low aspect |
| Naish | Jet HA Front Wing Jet HA 1240 | 1,240 | +3.3% | 8.60 | +4.9% | 1,030 | C3 Mid aspect |
| GONG | Fluid V3 Atmo XL | 1,160 | -3.3% | 8.70 | +6.1% | 1,000 | C3 Mid aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +4.2% | 7.60 | -7.3% | 970 | C2 Mid-low aspect |
| Family | Whizz |
|---|---|
| Size | 1200 |
| Area, cm² | 1,200 |
| Area basis | unknown |
| Span, mm | 990 |
| Chord, mm | — |
| Aspect ratio | 8.20 |
| Band | C2 Mid-low aspect |
| Brand files it under | Surf / carve |
| Disciplines | prone, wake |
| Construction | SLS |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
