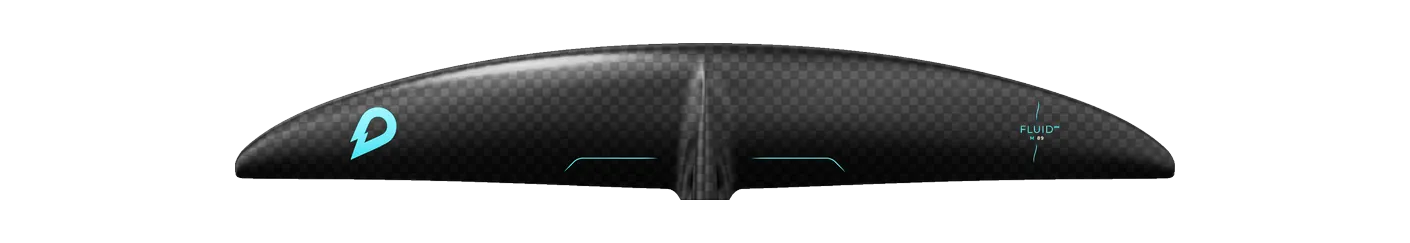

GONG Fluid V3 Atmo L (Team / Carbon HM)
- 1,010area, cm²
- 940span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Fluid Chord 144 mm Brand’s category Surf / carve Disciplines wing, prone, sup, kite Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Siren MA Front Wing 1000, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fluid V3 Atmo runs 9 sizes, 510–1,460 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 940 mm span is typical for the area: the median across the 130 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Siren MA Front Wing 1000 | 1,000 | -1.0% | 8.54 | -1.8% | 922 | Mid aspect |
| Duotone | Whizz SLS 1000 | 1,000 | -1.0% | 8.50 | -2.3% | 920 | Mid-low aspect |
| Sabfoil | Blackbird 905 Balz Muller Signature | 998 | -1.2% | 8.30 | -4.6% | 905 | Mid-low aspect |
| Sabfoil | 909 Balz Muller Limited Müller | 1,000 | -1.0% | 8.26 | -5.1% | 909 | Mid-low aspect |
| Code Foils | X Series Front Wing 985X | 985 | -2.5% | 8.20 | -5.7% | 896 | Mid-low aspect |
| KT Foiling | Nomad 980 | 980 | -3.0% | 9.20 | +5.7% | 950 | Mid aspect |
| Naish | Jet HA Front Wing 1040 | 1,040 | +3.0% | 9.20 | +5.7% | 980 | Mid aspect |
| AFS | Silk V2 Front Wing 1050 | 1,050 | +4.0% | 9.00 | +3.4% | 972 | Mid aspect |
| Duotone | Crest D/LAB 1050 | 1,050 | +4.0% | 8.80 | +1.1% | 960 | Mid aspect |
| Takoon | Flare Front Wing 1050 | 1,050 | +4.0% | 8.60 | -1.1% | 950 | Mid aspect |
| Unifoil | Aggression 150 | 967 | -4.3% | 8.20 | -5.7% | 890 | Mid-low aspect |
| Cabrinha | Fusion H-Series MkII H1000 | 1,000 | -1.0% | 8.10 | -6.9% | 900 | Mid-low aspect |
| Cabrinha | Whippit 1000 | 1,000 | -1.0% | 8.10 | -6.9% | 900 | Mid-low aspect |
| RRD | Flying Fish Front Wing Y30 1050 | 1,050 | +4.0% | 9.30 | +6.9% | 990 | Mid aspect |
Specifications
| Family | Fluid |
|---|---|
| Size | L |
| Area, cm² | 1,010 |
| Area basis | unknown |
| Span, mm | 940 |
| Chord, mm | 144 |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, sup, kite |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
