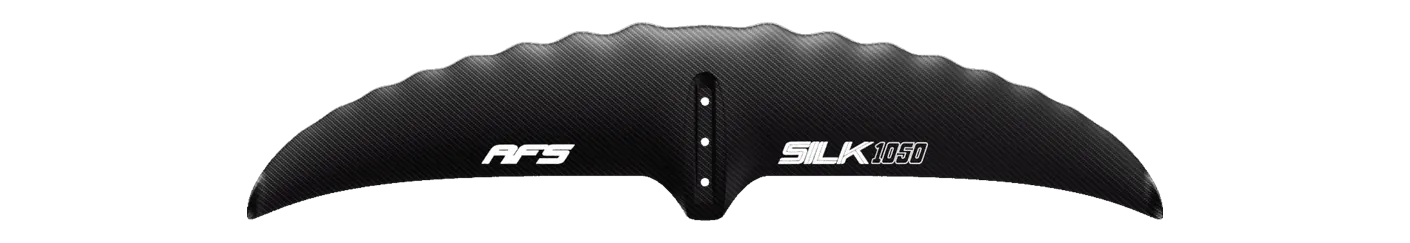

AFS Silk Front Wing (V1) 1050
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,050area, cm²
- 916span, mm
- 8.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family SILK Chord 150 mm Brand’s category Surf / carve Disciplines prone, wing, sup HR Carbon / Corecell Core · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the F-One SUSHI UHM Carbon 1020 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 916 mm span is 5% narrower than typical for the area — the median across the 132 current wings within 10% of its size is 969 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SK8 HM Carbon (T2) 1050 | 1,050 | +0.0% | 8.00 | +0.0% | 915 | Mid-low aspect |
| Omen | Operator 1050 | 1,050 | +0.0% | 7.70 | -3.7% | 900 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 1020 | 1,020 | -2.9% | 7.70 | -3.7% | 885 | Mid-low aspect |
| North | Sonar SF1080 | 1,080 | +2.9% | 7.80 | -2.5% | 915 | Mid-low aspect |
| GONG | Curve H V3 FG L | 1,070 | +1.9% | 8.40 | +5.0% | 950 | Mid-low aspect |
| Code Foils | X Series Front Wing 1085X | 1,085 | +3.3% | 8.20 | +2.5% | 940 | Mid-low aspect |
| GONG | Fluid H V3 FG L | 1,010 | -3.8% | 8.40 | +5.0% | 920 | Mid-low aspect |
| Unifoil | Aggression 170 | 1,096 | +4.4% | 8.20 | +2.5% | 950 | Mid-low aspect |
| Unifoil | Progression 170 | 1,097 | +4.5% | 8.30 | +3.8% | 953 | Mid-low aspect |
| Takoon | Flare Front Wing 1050 | 1,050 | +0.0% | 8.60 | +7.5% | 950 | Mid aspect |
| Cabrinha | Fusion H-Series MkII H1000 | 1,000 | -4.8% | 8.10 | +1.2% | 900 | Mid-low aspect |
| Cabrinha | Whippit 1000 | 1,000 | -4.8% | 8.10 | +1.2% | 900 | Mid-low aspect |
| Duotone | Whizz SLS 1000 | 1,000 | -4.8% | 8.50 | +6.2% | 920 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1100 | 1,100 | +4.8% | 8.00 | +0.0% | 940 | Mid-low aspect |
| Naish | Siren MA Front Wing 1000 | 1,000 | -4.8% | 8.54 | +6.7% | 922 | Mid aspect |
| Sabfoil | 909 Balz Muller Limited Müller | 1,000 | -4.8% | 8.26 | +3.2% | 909 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1100 | 1,100 | +4.8% | 8.00 | +0.0% | 938 | Mid-low aspect |
| Sabfoil | Blackbird 905 Balz Muller Signature | 998 | -5.0% | 8.30 | +3.8% | 905 | Mid-low aspect |
Specifications
| Family | SILK |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 916 |
| Chord, mm | 150 |
| Aspect ratio | 8.00 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | HR Carbon / Corecell Core |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
