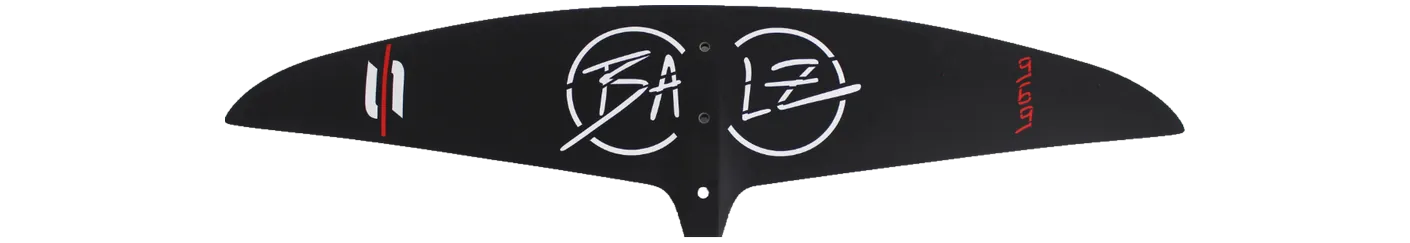

Sabfoil 969 Balz Muller Limited 969 Balz Müller Limited hydrofoil front wing: 1,230 cm², 969 mm span, aspect ratio 7.80, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Sabfoil's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire Spitfire 960 | 1,196 | -2.8% | 7.84 | +0.5% | 960 | C2 Mid-low aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +1.6% | 7.60 | -2.6% | 970 | C2 Mid-low aspect |
| F-One | SEVEN SEAS Carbon SEVEN SEAS 1200 | 1,200 | -2.4% | 8.00 | +2.6% | 980 | C2 Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | -3.3% | 8.00 | +2.6% | 990 | C2 Mid-low aspect |
| Unifoil | Progression 200 Progression 200 | 1,290 | +4.9% | 7.90 | +1.3% | 1,010 | C2 Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | +2.4% | 8.14 | +4.4% | 1,013 | C2 Mid-low aspect |
| Sroka | S-Foil 1190 L HA 1190 L HA | 1,190 | -3.3% | 7.50 | -3.8% | 910 | C2 Mid-low aspect |
| Axis | HPS (High Performance Speed) HPS 930 | 1,214 | -1.3% | 7.34 | -5.9% | 930 | C2 Mid-low aspect |
| Duotone | Whizz SLS 1200 | 1,200 | -2.4% | 8.20 | +5.1% | 990 | C2 Mid-low aspect |
| Code Foils | X Series Front Wing 1195X | 1,195 | -2.8% | 8.20 | +5.1% | 987 | C2 Mid-low aspect |
| Takuma | Kujira II Front Wing Kujira II 1250 | 1,250 | +1.6% | 8.30 | +6.4% | 1,018 | C2 Mid-low aspect |
| GONG | Curve H V3 FG XL | 1,220 | -0.8% | 8.40 | +7.7% | 1,010 | C2 Mid-low aspect |
| Naish | Siren MA Front Wing Siren 1200 | 1,200 | -2.4% | 8.33 | +6.8% | 1,000 | C2 Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +1.6% | 7.20 | -7.7% | 950 | C2 Mid-low aspect |
| Family | Balz Muller Limited |
|---|---|
| Size | 969 Balz Müller Limited |
| Area, cm² | 1,230 |
| Area basis | unknown |
| Span, mm | 969 |
| Chord, mm | 186 |
| Aspect ratio | 7.80 |
| Band | C2 Mid-low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, windfoil, prone |
| Construction | full carbon with foam core |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Sabfoil on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
